Stand alone interface for Flexradio 6x00
to Expert 2K-FA linear and Ultrabeam Antenna Controller

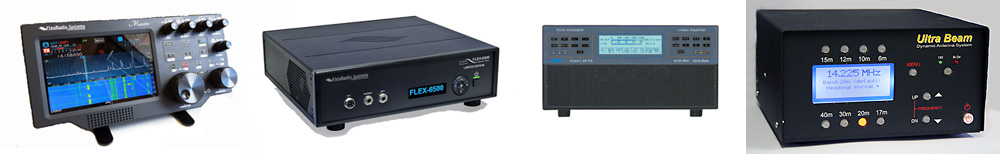

Flexradio 6500 with Maestro, SPE Expert 2K-FA, Ultrabeam

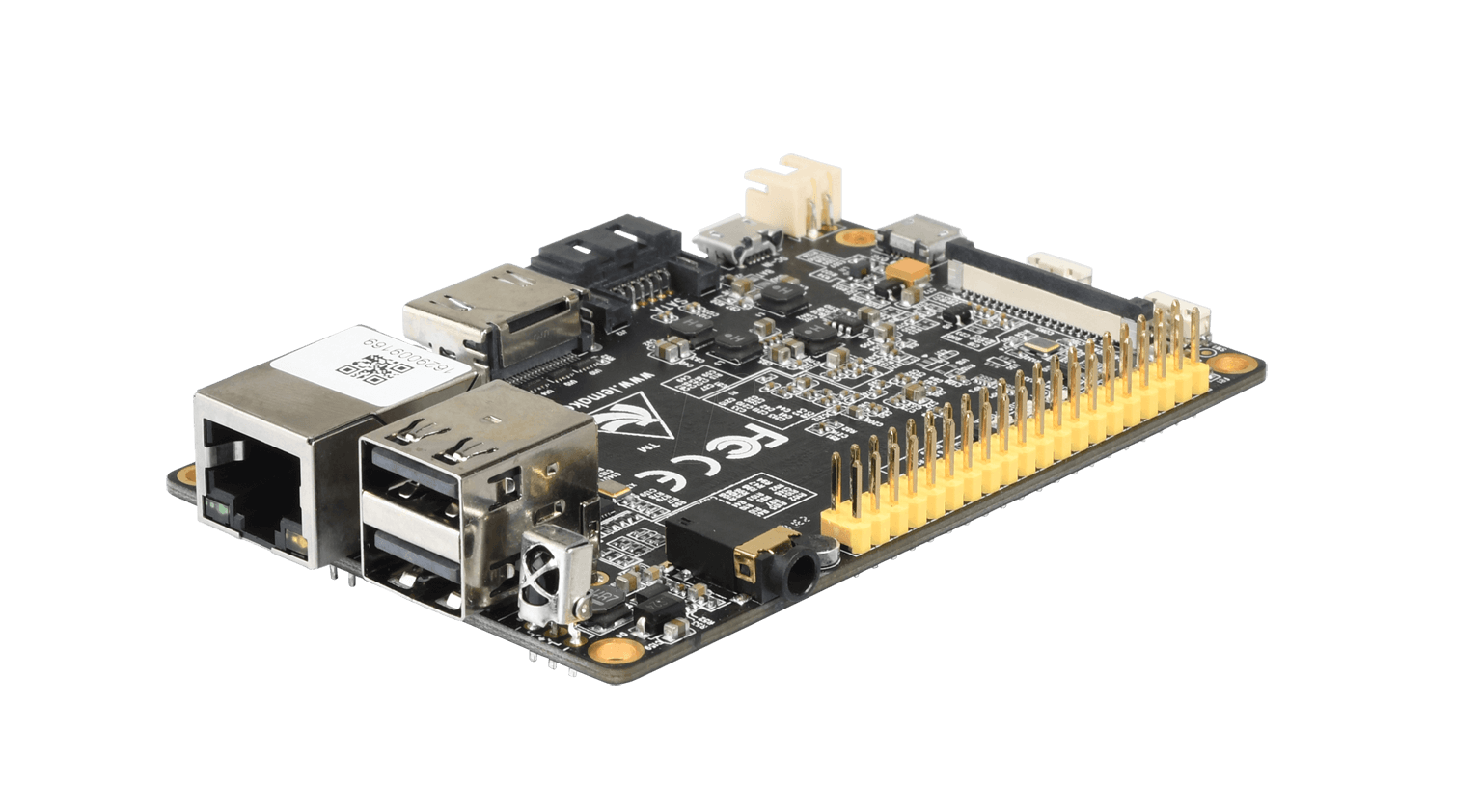

My interface uses a Banana-Pro. ( A Raspberry-Pi 4b will also work with small changes due to different UARTs.) As an operating system a Linux with Systemd is used. ARMBIAN 20.02 Debian GNU/Linux 9 (Stretch). The suitable systemd start files are added.

Even if you would not like to copy the solution, could be part solution of it a suggestion for you!

At the time of the development the Ultrabeam-API was available only with a non-publication arrangement. Today the API is disclosed and was downloadable with WiMO. The File disapeared soem time ago at WiMo website.


Interface with connection cables (Flexradio Flex 6x00 and SPE Expert 2K-FA).

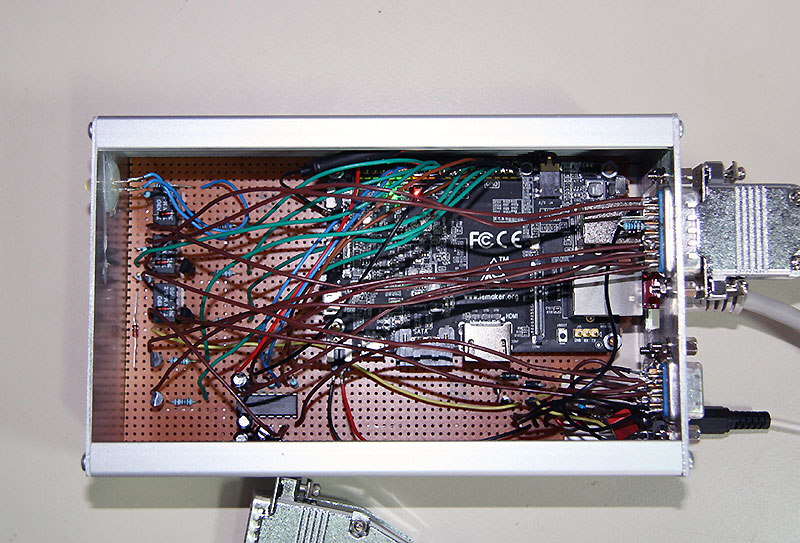

Look inside onto Banana Pro and wiring.

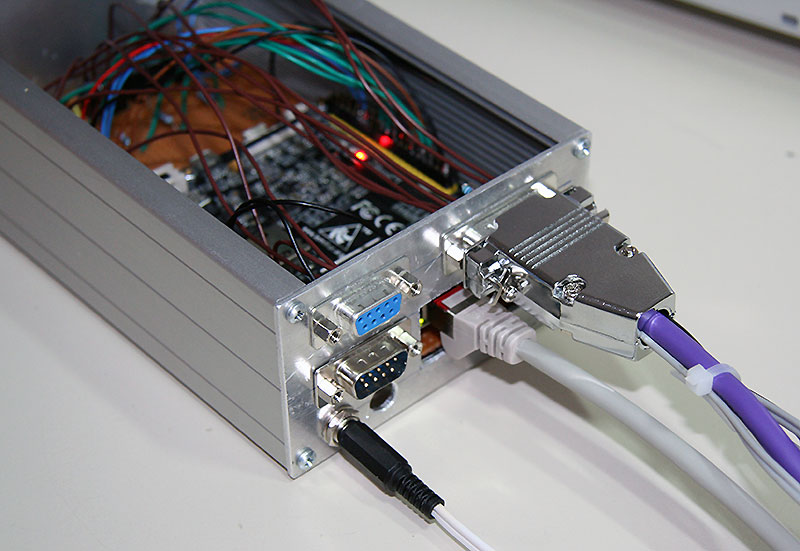

Rear side with connectors.

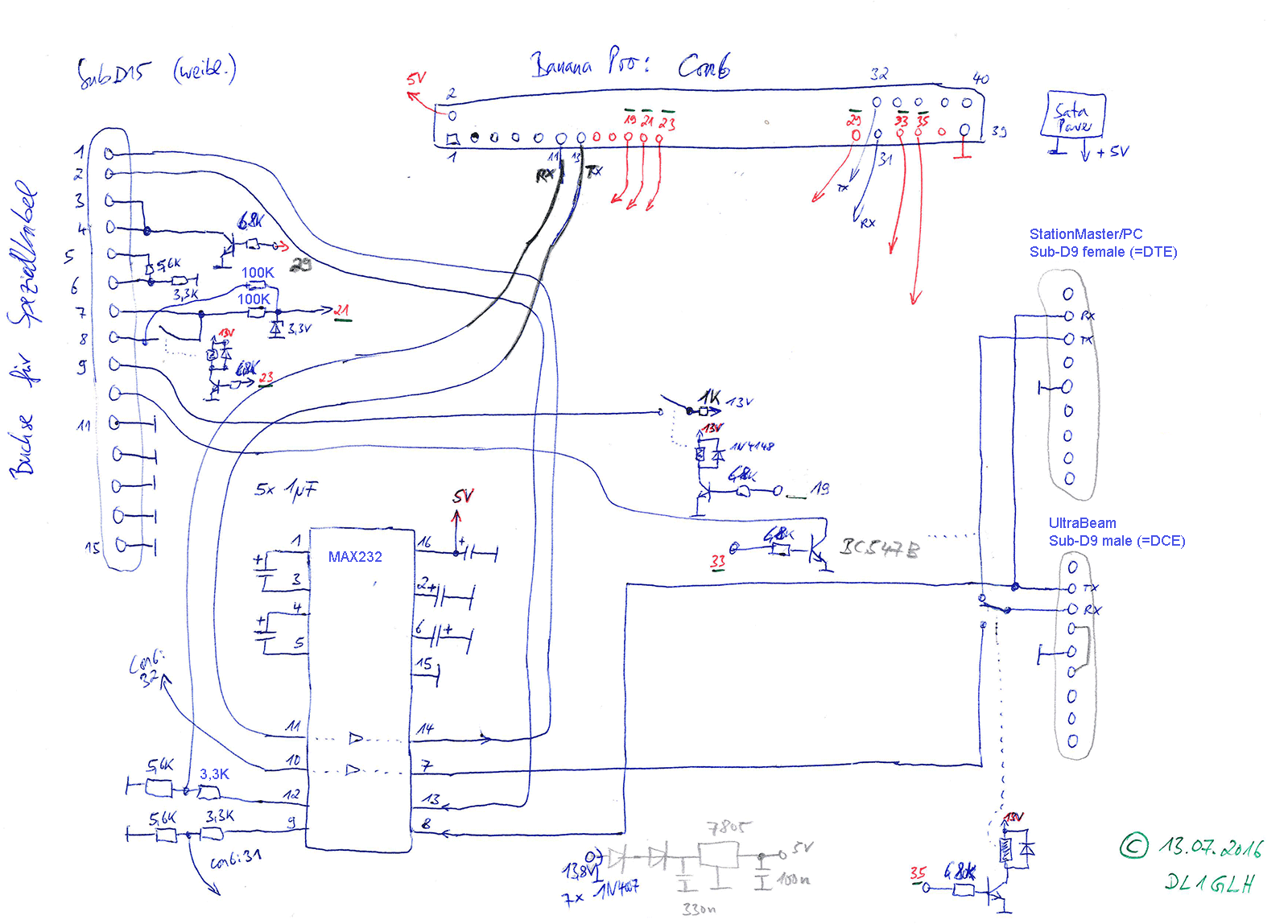

Circuit.

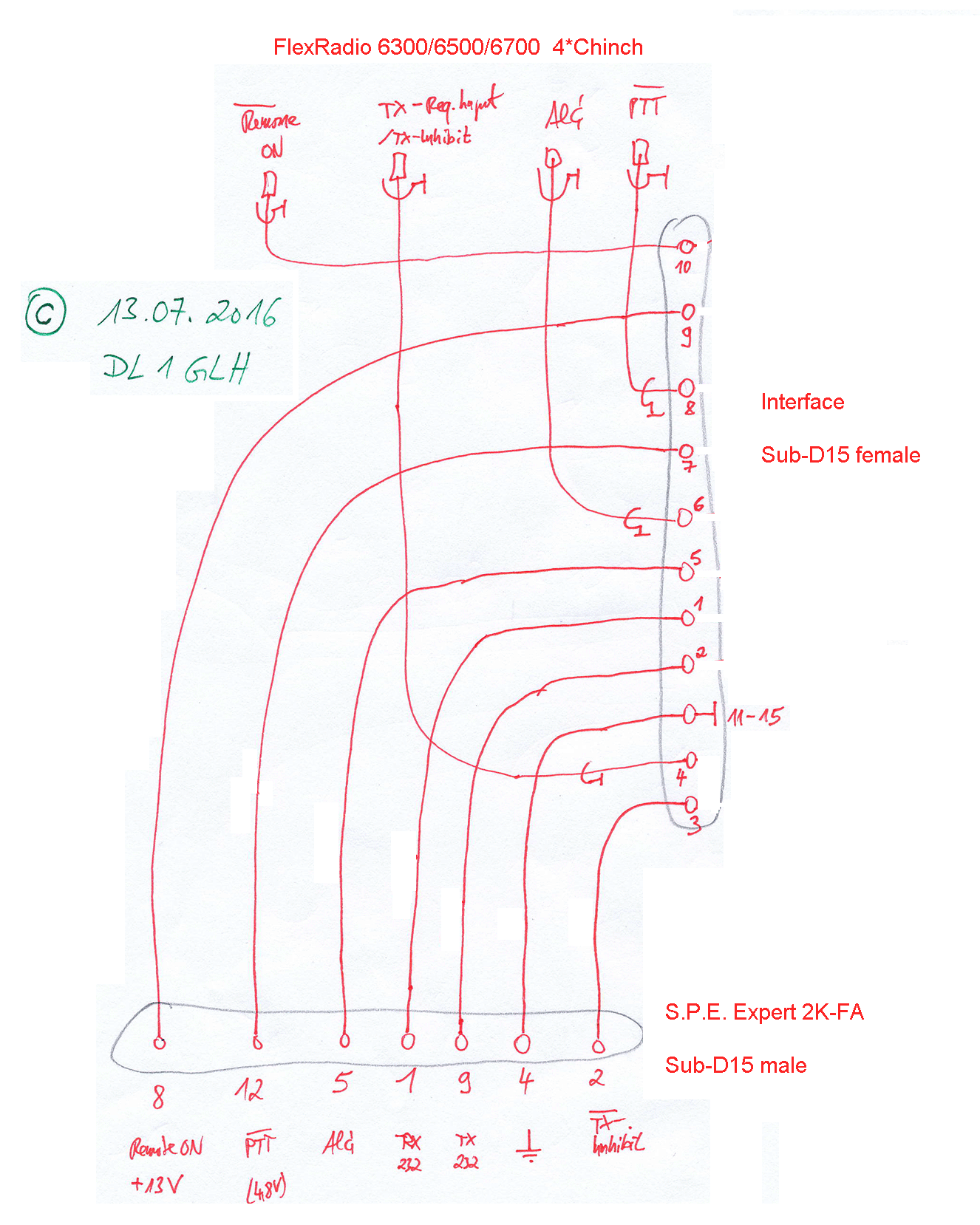

Special interconnection (fan-out) cable. The connection with the Ultrabeam occurs with 1:1 cable.

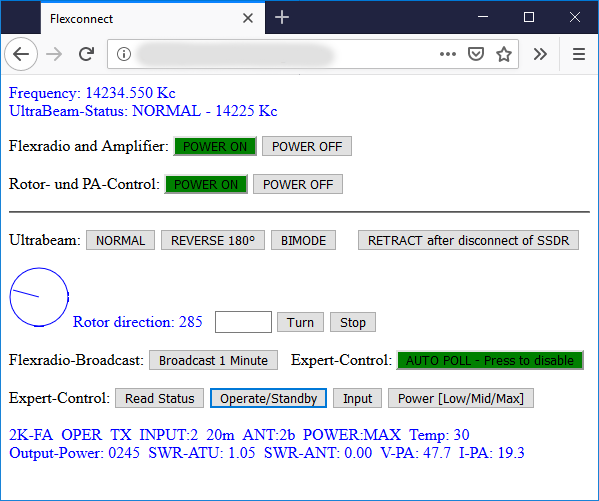

Basic web interface to switch on and switch off the transceiver and the amplifier, as well as steer the Ultrabeam, turn the network accessible rotator and control the network accessible Expert 2K-FA amplifier.

Last Update: 17. February 2020. Source code archive. Have fun...
